什么是衰减器?
衰减器的主要用途?
衰减器的类型
常用衰减器参数

-原创内容,请勿转载。

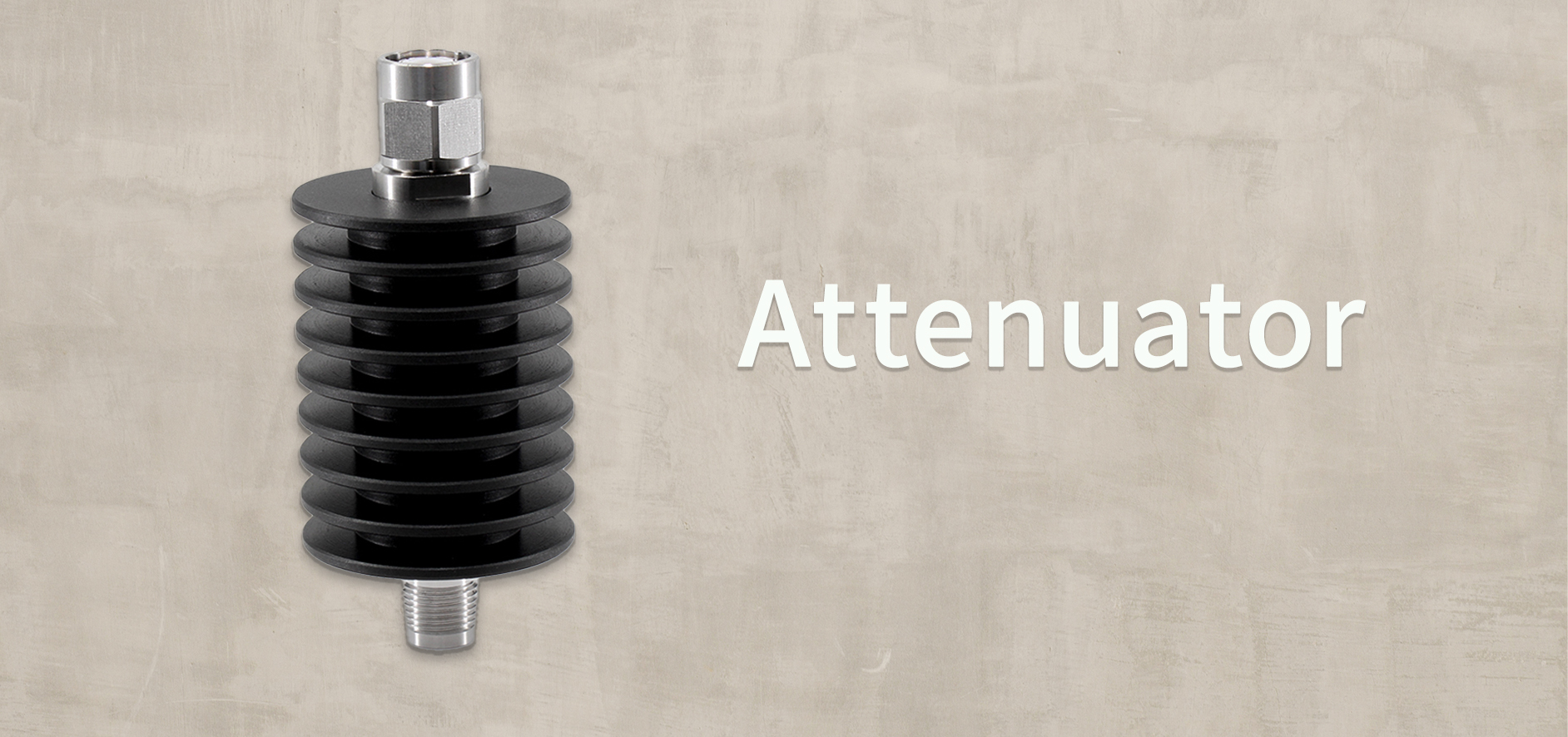

什么是衰减器?

•衰减器是一种用于降低信号强度的电子元件。其主要功能是通过降低信号的电压、电流或功率来实现信号衰减。该器件通常由电阻器或热敏电阻组成,它们能够将信号能量转化为热能,从而有效降低信号强度。


衰减器的主要用途?

•调整电路中信号的幅度

•在使用比较法的测量电路中,该设备可以直接读取并显示被测网络的信号衰减程度,从而提供方便准确的测量方法。

•为了优化阻抗匹配,当特定电路需要保持相对稳定的负载阻抗时,可以在电路与其实际负载阻抗之间引入衰减器,作为阻抗变化的缓冲器。通常,衰减器放置在信号源和负载之间。它是一个由电阻元件构成的四端网络。其特性阻抗和衰减都是与频率无关的常数值,并且相移为零。

•衰减器作为实现信号功率调节、阻抗适应、精密测试测量、设备保护、自动增益调整、信号均衡、干扰抑制和精确纵的核心部件,在许多领域发挥着不可或缺的作用。其应用边界广泛,跨越多个高科技领域,如通信网络、测试设备、雷达系统、医疗器械和航空航天技术。


衰减器的类型;

•在电子工程领域,固定式衰减器以其多样化的结构而闻名,包括 L 形、T 形、X 形和桥式 T 形等几种经典设计。L 型衰减器由于其不对称特性,常用于实现阻抗的精确匹配;而 T 型、X 型和桥式 T 型衰减器则侧重于对称结构的信号衰减功能。这些衰减器按其接地方式可分为不平衡衰减器和平衡衰减器。不平衡衰减器的一端接地,而平衡衰减器的两端均不接地。它们各自在电路中发挥着独特的作用,以确保信号处理的准确性和稳定性。


常用衰减器参数

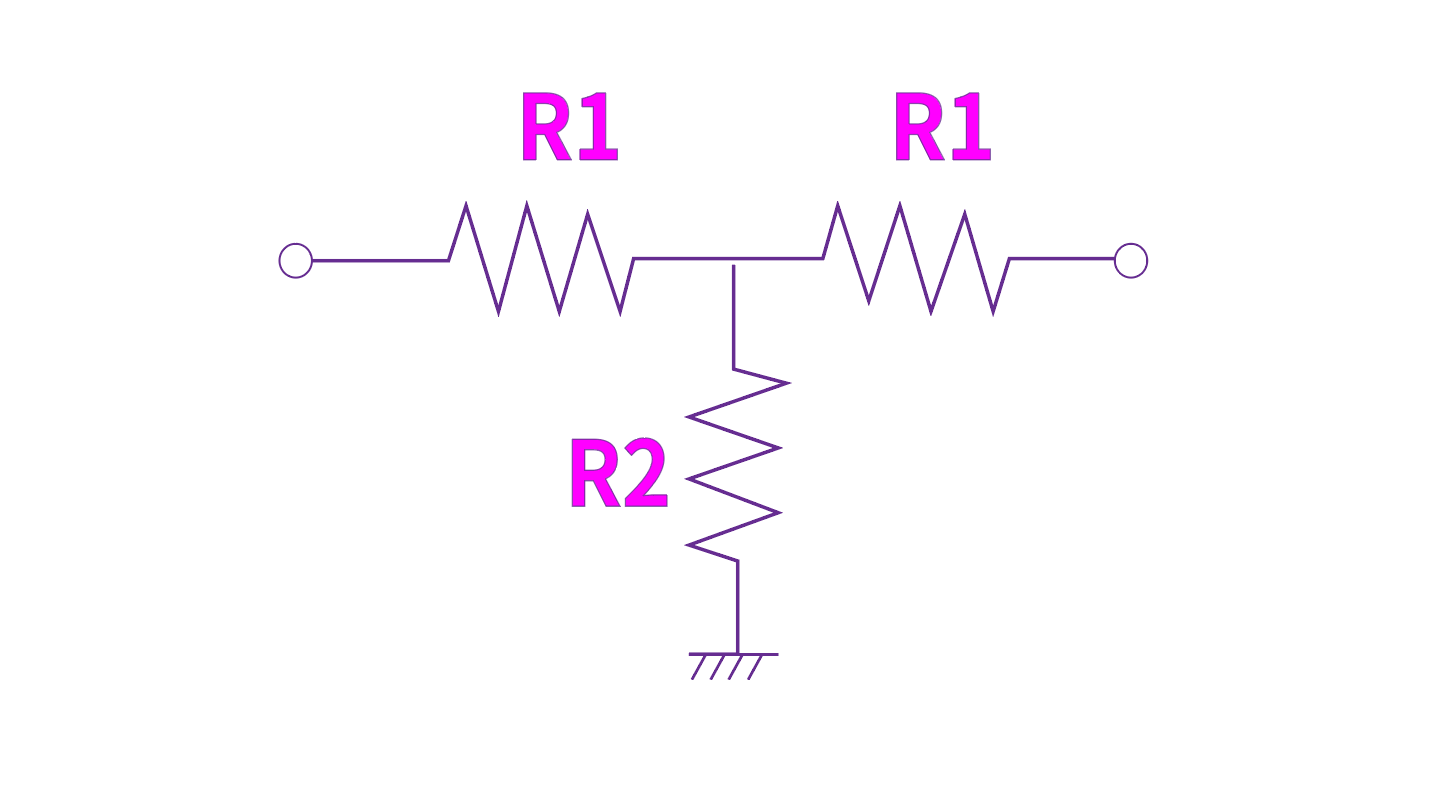

•T 型衰减器

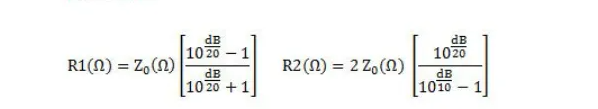

T型衰减器的电阻计算公式如下:

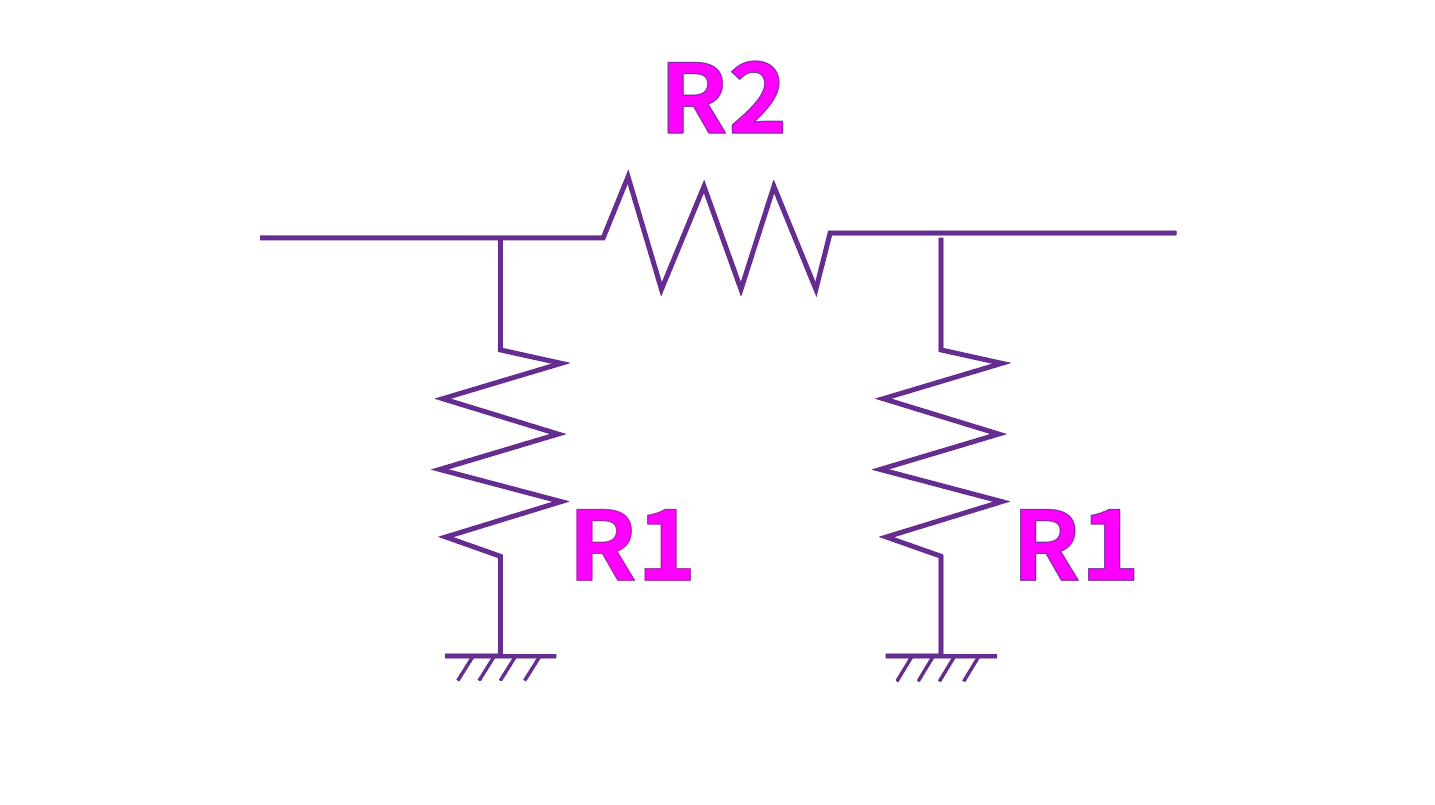

•Pi 衰减器


Calculation formula for resistor network:

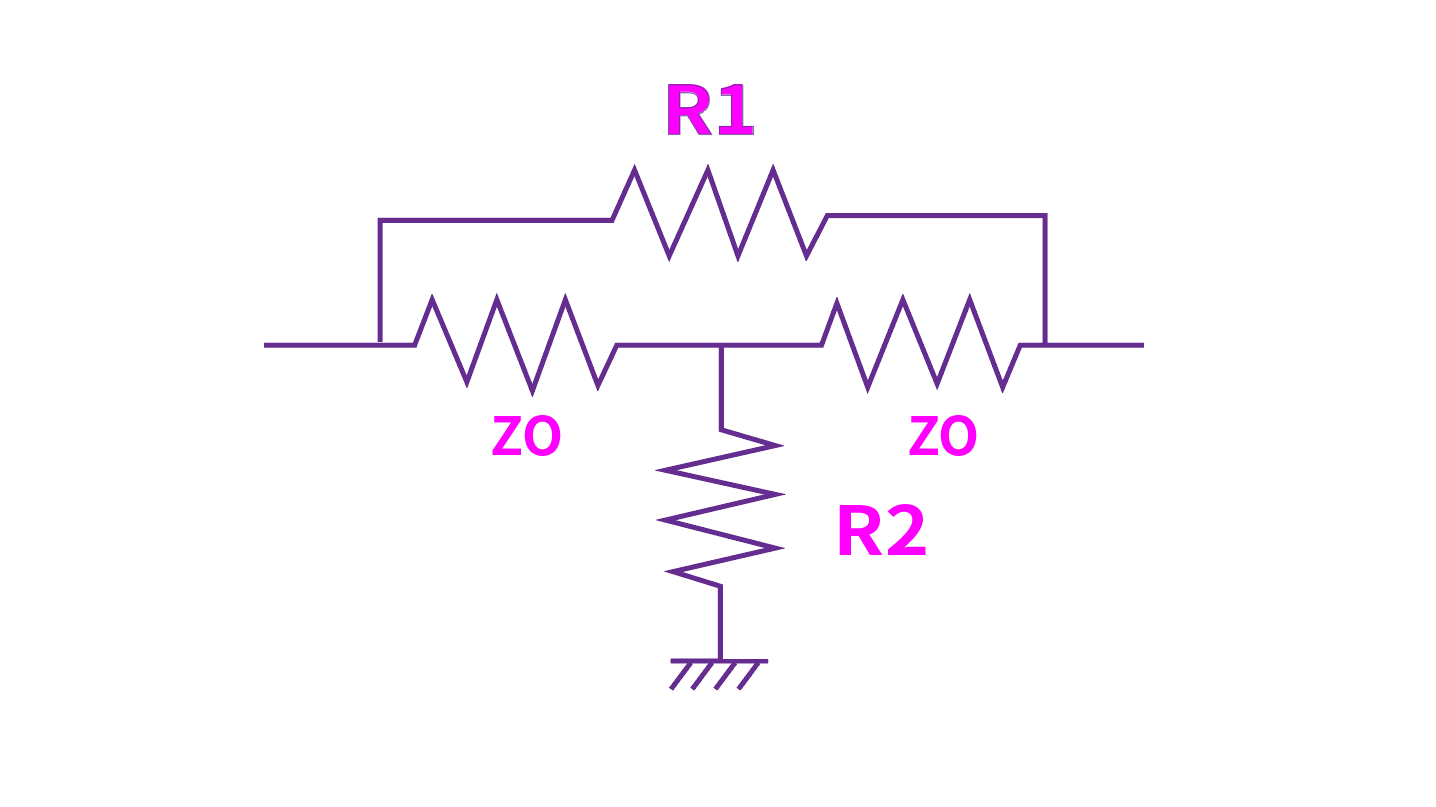

•Bridged T-type attenuator

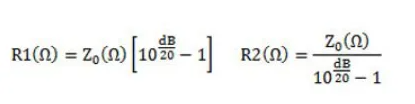

Resistance calculation formula:

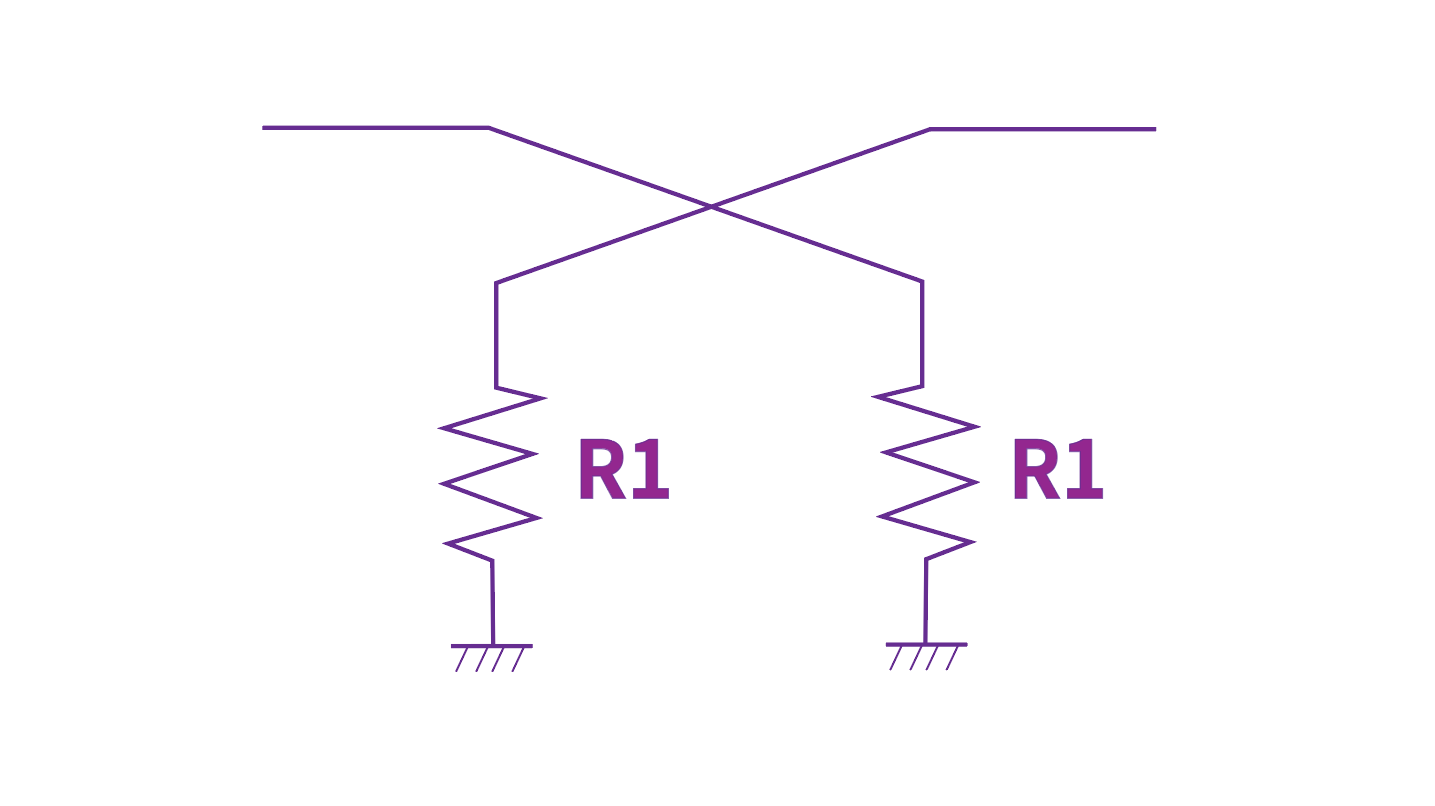

•Balanced attenuator


Resistance calculation formula:



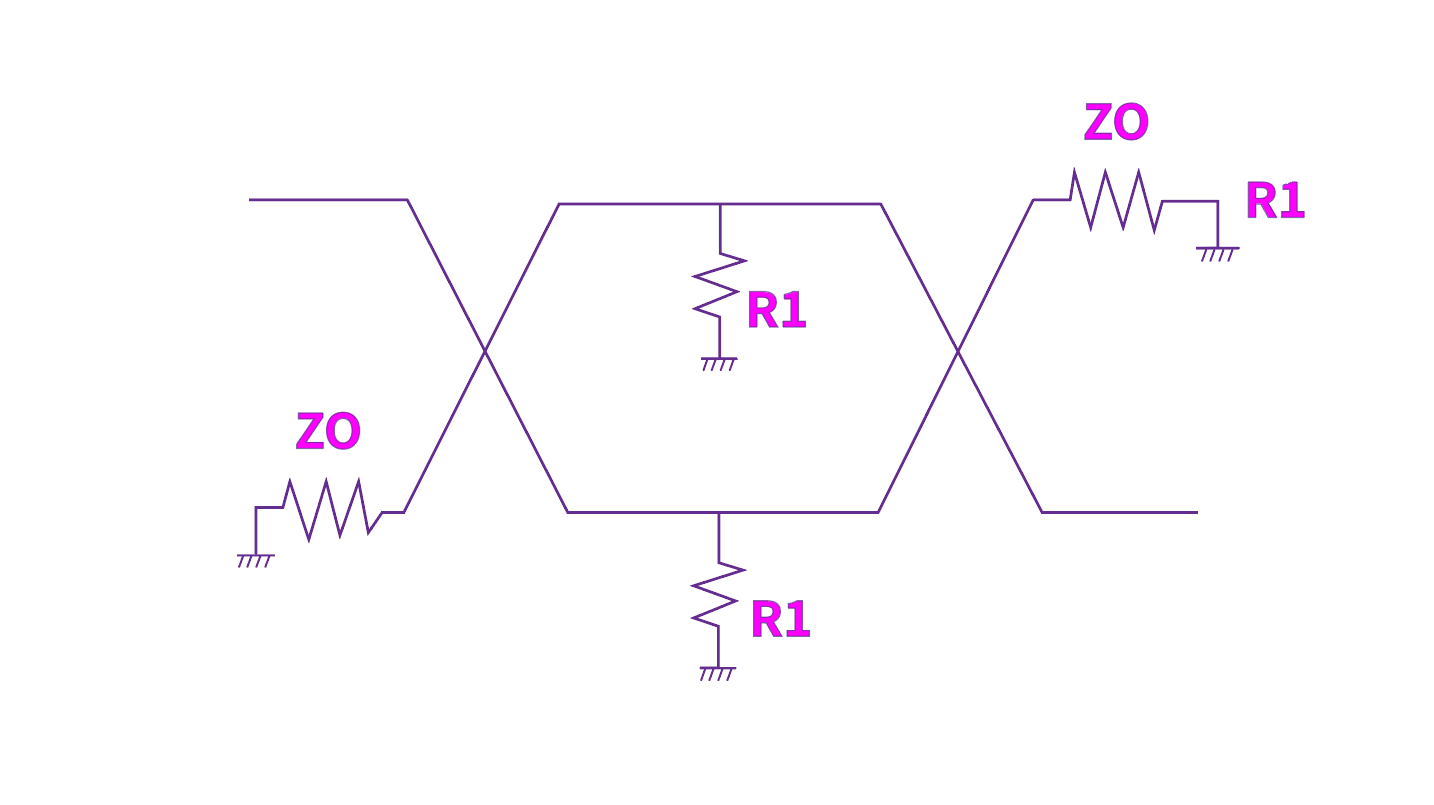

•Reflective attenuator

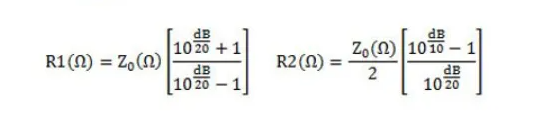

The calculation formula is as follows:
