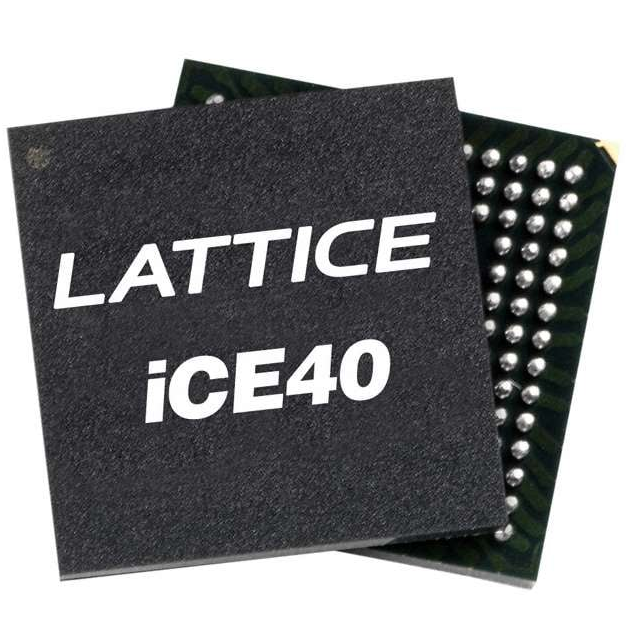

A Comprehensive Guide To ICE40UL1K-CM36AI iCE40 UltraLite™ Field Programmable Gate Array (FPGA) IC 26 57344 1248 36-VFBGA

iCE40 UltraLite™ Field Programmable Gate Array (FPGA) IC 26 57344 1248 36-VFBGA

General Description

iCE40 UltraLite family is an optimum logic, smallest footprint, low I/O count ultra-low power FPGA and sensor manager

with instant on capability. It is designed for ultra-low power mobile applications, such as smartphones, tabletsand

hand-held devices. The iCE40 UltraLite family includes integrated blocks to interface with virtually all mobile sensors and

application processors. The iCE40 UltraLite family also features two on-chip oscillators, 10 kHz and 48 MHz. The LFOSC

(10 kHz) is ideal for low power function in always-on applications, while HFOSC (48 MHz) can beused for awaken activities.

The hardened RGB PWM IP, with the three 24 mA constant current RGB LED outputs on the iCE40 UltraLite provides all

the necessary logic to directly drive the service LED, without the need of external MOSFET or buffer.

The 400 mA constant current IR driver output provides a direct interface to external LED for application such as IrDA

functions. Users simply implement the hardened TX/RX pulse logic that meets their needs, and connect the IRdriver

directly to the LED, without the need of external MOSFET or buffer. The 100 mA Barcode Emulation driveroutput provides

a direct interface for applications such as barcode scanning. The 100 mA and 400 mA drivers canalso be combined to be

used as a 500 mA IR driver if higher than 400 mA current drive is required.

The iCE40 UltraLite family of devices are targeting for mobile applications to perform functions such as IrDA, Service LED,

Barcode Emulation, GPIO Expander, SDIO Level Shift, and other custom functions.

The iCE40 UltraLite family features two device densities of 640 or 1K Look Up Tables (LUTs) of logic with programmable

I/Os that can be used as an interface port or general purpose I/O. It also has up to 56 kbits of Block RAMs towork with

user logic.

Features

• Flexible Logic Architecture

      Two devices with 640 or 1K LUTs

      Offered in 16-ball WLCSP package

      Offered in 36-ball ucBGA package

• Ultra-low Power Devices

      Advanced 40 nm ultra-low power process

      Typical 35 µA standby current which equals42 uW standby power consumption

• Embedded and Distributed Memory

      Up to 56 kbits sysMEM™ Embedded Block RAM

• Two Hardened Interfaces

      Two optional FIFO mode I2C interface up to1 MHz

      Either master or slave

• Two On-Chip Oscillators

      Low Frequency Oscillator - 10 kHz

      High Frequency Oscillator - 48 MHz

• Hardened PWM circuit for RGB

• Hardened TX/RX Pulse Logic circuit for IRLED

• 24 mA Current Drive RGB LED Outputs

      Three drive outputs in each device

      User selectable sink current up to 24 mA

• 400 or 500 mA Current Drive IR LED Output

      One IR drive output in each device

      User selectable sink current up to 400 mA

      Can be combined with 100 mA Barcode driver toform 500 mA IR driver

• 100 mA Current Drive Barcode Emulator

      One barcode driver output in each device

      User selectable sink current up to 100 mA

      Can be combined with 400 mA IR driver to useas 500 mA IR driver

• Flexible On-Chip Clocking

      Eight low skew global signal resource, six canbe directly driven from external pins

      One PLL with dynamic interface per device

• Flexible Device Configuration

      SRAM is configured through:

      — Standard SPI Interface

      — Internal Nonvolatile Configuration Memory(NVCM)

• Ultra-Small Form Factor

      As small as 1.409 mm x 1.409 mm

• Applications

      Smartphones

      Tablets and Consumer Handheld Devices

      Handheld Industrial Devices

      Multi Sensor Management Applications

      IR remote, Barcode emulator

      RGB light control
