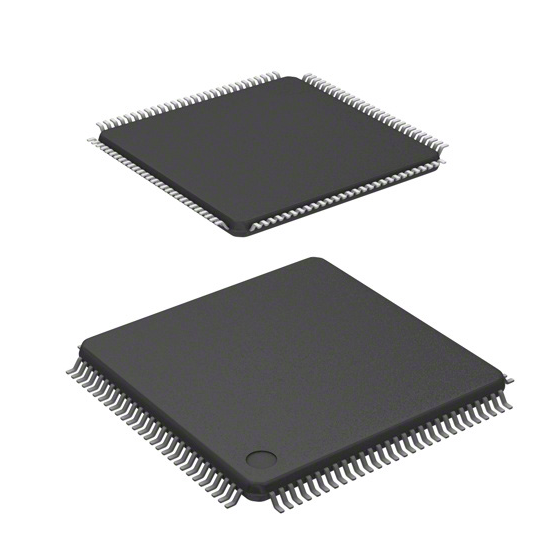

A Comprehensive Guide To MC9S12DP512CPVER Microcontroller IC 16-Bit 25MHz 512KB (512K x 8) FLASH 112-LQFP (20x20)

HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 512KB (512K x 8) FLASH 112-LQFP (20x20)

Overview

The MC9S12DP512 microcontroller unit (MCU) is a 16-bit device composed of standard on-chip

peripherals including a 16-bit central processing unit (HCS12 CPU), 512K bytes of Flash EEPROM, 14K

bytes of RAM, 4K bytes of EEPROM, two asynchronous serial communications interfaces (SCI), three

serial peripheral interfaces (SPI), an 8-channel IC/OC enhanced capture timer, two 8-channel, 10-bit

analog-to-digital converters (ADC), an 8-channel pulse-width modulator (PWM), a digital Byte Data Link

Controller (BDLC), 29 discrete digital I/O channels (Port A, Port B, Port K and Port E), 20 discrete digital

I/O lines with interrupt and wake up capability, five CAN 2.0 A, B software compatible modules

(MSCAN12), and an Inter-IC Bus. The MC9S12DP512 has full 16-bit data paths throughout. However,

the external bus can operate in an 8-bit narrow mode so single 8-bit wide memory can be interfaced for

lower cost systems. The inclusion of a PLL circuit allows power consumption and performance to be

adjusted to suit operational requirements.

Features

• HCS12 Core

– 16-bit HCS12 CPU

i. Upward compatible with M68HC11 instruction set

ii. Interrupt stacking and programmer’s model identical to M68HC11

iii.Instruction queue

iv. Enhanced indexed addressing

– MEBI (Multiplexed External Bus Interface)

– MMC (Module Mapping Control)

– INT (Interrupt control)

– BKP (Breakpoints)

– BDM (Background Debug Mode)

• CRG (Clock and Reset Generation)

– Low current Colpitts oscillator or

– Pierce oscillator

– PLL

– COP watchdog

– Real Time Interrupt

– Clock Monitor

• 8-bit and 4-bit ports with interrupt functionality

– Digital filtering

– Programmable rising or falling edge trigger

• Memory

– 512K Flash EEPROM

– 4K byte EEPROM

– 14K byte RAM

• Two 8-channel Analog-to-Digital Converters

– 10-bit resolution

– External conversion trigger capability

• Five 1M bit per second, CAN 2.0 A, B software compatible modules

– Five receive and three transmit buffers

– Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit

– Four separate interrupt channels for Rx, Tx, error and wake-up

– Low-pass filter wake-up function

– Loop-back for self test operation

• Enhanced Capture Timer

– 16-bit main counter with 7-bit prescaler

– 8 programmable input capture or output compare channels

– Four 8-bit or two 16-bit pulse accumulators

• 8 PWM channels

– Programmable period and duty cycle

– 8-bit 8-channel or 16-bit 4-channel

– Separate control for each pulse width and duty cycle

– Center-aligned or left-aligned outputs

– Programmable clock select logic with a wide range of frequencies

– Fast emergency shutdown input

– Usable as interrupt inputs

• Serial interfaces

– Two asynchronous Serial Communications Interfaces (SCI)

– Three Synchronous Serial Peripheral Interface (SPI)

• Byte Data Link Controller (BDLC)

– SAE J1850 Class B Data Communications Network Interface Compatible and ISO Compatible

for Low-Speed (<125 Kbps) Serial Data Communications in Automotive Applications

• Inter-IC Bus (IIC)

–  Compatible with I2C Bus standard

– Multi-master operation

– Software programmable for one of 256 different serial clock frequencies

• 112-Pin LQFP package

– I/O lines with 5V input and drive capability

– 5V A/D converter inputs

– Operation at 50MHz equivalent to 25MHz Bus Speed over -40˚C <= TA <= 125˚C

– Development support

– Single-wire background debug™ mode (BDM)

– On-chip hardware breakpoints
