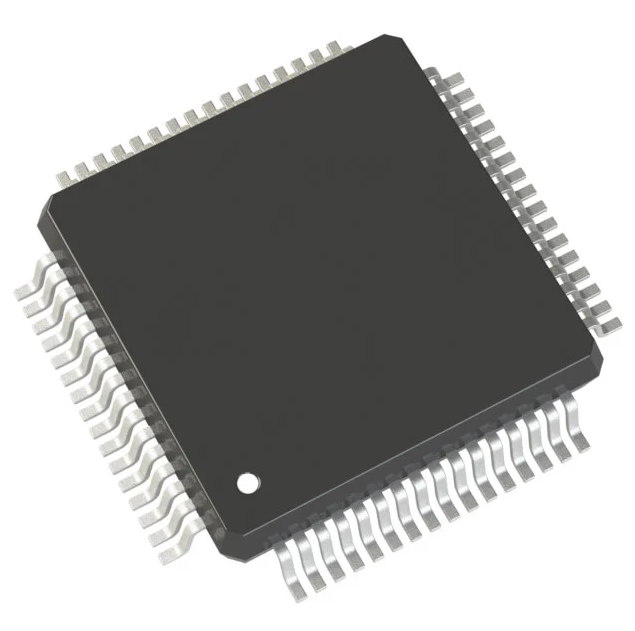

A Comprehensive Guide To S912XHY256F0VLLR Microcontroller IC 16-Bit 40MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)

HCS12X HCS12X Microcontroller IC 16-Bit 40MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)

Introduction

The MC9S12XHY family is an optimized, automotive, 16-bit microcontroller product line that is

specifically designed for entry level instrument clusters. This family also services generic automotive

applications requiring CAN, LCD, Motor driver control or LIN/SAE J2602. Typical examples of these

applications include instrument clusters for automobiles and 2 or 3 wheelers, HVAC displays, general

purpose motor control and body controllers.

The MC9S12XHY family uses many of the same features found on the MC9S12XS family and

MC9S12HY/HA family, including error correction code (ECC) on flash memory, a separate data-flash

module for diagnostic or data storage, a fast analog-to-digital converter (ATD) and a frequency modulated

phase locked loop (IPLL) that improves the EMC performance. The MC9S12XHY family features a 40x4

liquid crystal display (LCD) controller/driver and a motor pulse width modulator (MC) consisting of up to

16 high current outputs. The device is capable of stepper motor stall detection (SSD) via hardware or

software, please contact Freescale sales office for detailed information on software SSD.

The MC9S12XHY family deliver all the advantages and efficiencies of a 16-bit MCU while retaining the

low cost, power consumption, EMC, and code-size efficiency advantages currently enjoyed by users of

Freescale’s existing 8-bit and 16-bit MCU families. Like the MC9S12HY/HA family, the MC9S12XHY

family run 16-bit wide accesses without wait states for all peripherals and memories. The MC9S12XHY

family is available in 112-pin LQFP and 100-pin LQFP package options. In addition to the I/O ports

available in each module, further I/O ports are available with interrupt capability allowing wake-up from

stop or wait modes.

Chip-Level Features

On-chip modules available within the family include the following features:

• CPU12XV1 CPU core

• Up to 256 Kbyte on-chip flash with ECC

• 8Kbyte data flash with ECC

• Up to 12Kbyte on-chip SRAM

• Phase locked loop (IPLL) frequency multiplier with internal filter

• 4–16 MHz amplitude controlled Pierce oscillator

• Two timer modules (TIM0 and TIM1) supporting input/output channels that provide a range of 16-

bit input capture, output compare, counter and pulse accumulator functions

• Pulse width modulation (PWM) module with up to 8 x 8-bit channels

• Up to 12-channel, 10-bit resolution successive approximation analog-to-digital converter (ATD)

• Up to 40x4 LCD driver

• PWM motor controller (MC) with up to 16 high current drivers

• Output slew rate control on Motor driver pad

• One serial peripheral interface (SPI) module

• One Inter-IC bus interface (IIC) module

• Two serial communication interface (SCI) module supporting LIN communications

• Two multi-scalable controller area network (MSCAN) module (supporting CAN protocol 2.0A/B)

• On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages

• Autonomous periodic interrupt (API)

• Stepper Motor Controller with up to drivers for up to 4 motors

• Four Stepper Stall Detector modules (one for each motor)

• Up to 25 key wakup inputs
