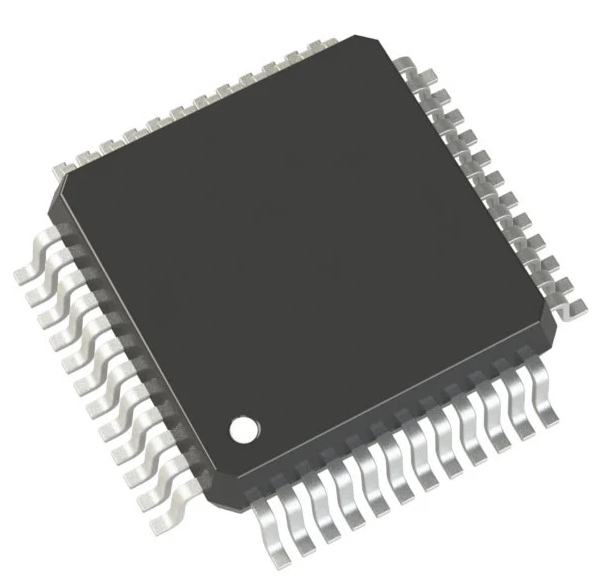

A Comprehensive Guide To S912ZVC19F0MLF Microcontroller IC 16-Bit 32MHz 192KB (192K x 8) FLASH 48-LQFP (7x7)

S12Z S12 MagniV Microcontroller IC 16-Bit 32MHz 192KB (192K x 8) FLASH 48-LQFP (7x7)

Introduction

The MC9S12ZVC-Family is a new member of the S12 MagniV product line integrating a battery level

(12V) voltage regulator, supply voltage monitoring, high voltage inputs and a CAN physical interface.It's

primarily targeting at CAN nodes like sensors, switch panels or small actuators. It offers various

low-power modes and wakeup management to address state of the art power consumption requirements.

Some members of theMC9S12ZVC-Family are also offered for high temperature applications requiring

AEC-Q100 Grade 0 (-40℃ to +150C ambient operating temperature range).

The MC9S12ZVC-Family is based on the enhanced performance, linear address space S12Z core and

delivers an optimized solution with the integration of several key system components into a single device,

optimizing system architecture and achieving significant space savings.

Chip-Level Features

On-chip modules available within the family include the following features:

·S12Z CPU core

·Up to 192 Kbyte on-chip flash with ECC

·Up to 2 Kbyte EEPROM with ECC

·Up to 12Kbyte on-chip SRAM with ECC

·Phase locked loop (IPLL) frequency multiplier with internal filter

·1 MHz internal RC oscillator with +/-1.3% accuracy over rated temperature range

·4-20MHz amplitude controlled pierce oscillator

·Internal COP (watchdog) module

·Analog-to-digital converter (ADC) with 12-bit resolution and up to 16 channels available on

external pins

·Two analog comparators (ACMP) with rail-to-rail inputs

·One 8-bit 5V digital-to-analog converter (DAC)

·Up to two serial peripheral interface(SPI) modules

· Up to two serial communication interface (SCI) modules

·SENT Transmitter Interface

·MSCAN(1 Mbit/s,CAN 2.0 A, B software compatible) module

·One on-chip CAN physical layer module

·8-channel timer module (TIM0) with input capture/output compare

·4-channel timer module (TIM1) with input capture/output compare (fast max 64MHz)

·Inter-IC (IIC) module

·4-channel 16-bit Pulse Width Modulation module (PWM0)

·4-channel 16-bit Pulse Width Modulation module (PWM1) (fast max 64MHz)

·On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages

·Autonomous periodic interrupt (API), supports cyclic wakeup from Stop mode

·Four pins to support 25 mA drive strength to VSSX

·One pin to support 20 mA drive strength from VDDX (EVDD)

·Two High Voltage Input(HVI) pins

·Supply Vsup monitoring with warning

·On-chip temperature sensor, temperature value can be measured with ADC or can generate a high

temperature interrupt
