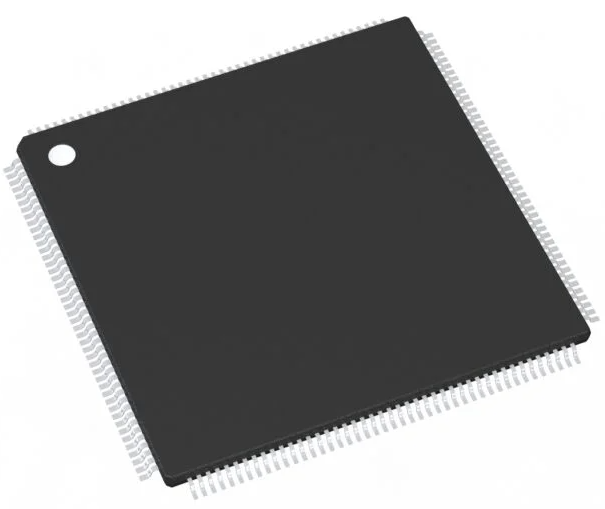

A Comprehensive Guide To S912ZVHL64F1CLQ Microcontroller IC 16-Bit 32MHz 64KB (64K x 8) FLASH 144-LQFP (20x20)

S12Z S12 MagniV Microcontroller IC 16-Bit 32MHz 64KB (64K x 8) FLASH 144-LQFP (20x20)

Introduction

The MC9S12ZVC-Family is a new member of the S12 MagniV product line integrating a battery level

(12V) voltage regulator, supply voltage monitoring, high voltage inputs and a CAN physical interface. It’s

primarily targeting at CAN nodes like sensors, switch panels or small actuators. It offers various

low-power modes and wakeup management to address state of the art power consumption requirements.

Some members of the MC9S12ZVC-Family are also offered for high temperature applications requiring

AEC-Q100 Grade 0 (-40°C to +150°C ambient operating temperature range).

The MC9S12ZVC-Family is based on the enhanced performance, linear address space S12Z core and

delivers an optimized solution with the integration of several key system components into a single device,

optimizing system architecture and achieving significant space savings.

Chip-Level Features

On-chip modules available within the family include the following features:

• S12Z CPU core

• Up to 192 Kbyte on-chip flash with ECC

• Up to 2 Kbyte EEPROM with ECC

• Up to 12Kbyte on-chip SRAM with ECC

• Phase locked loop (IPLL) frequency multiplier with internal filter

• 1 MHz internal RC oscillator with +/-1.3% accuracy over rated temperature range

• 4-20MHz amplitude controlled pierce oscillator

• Internal COP (watchdog) module

• Analog-to-digital converter (ADC) with 12-bit resolution and up to 16 channels available on

external pins

• Two analog comparators (ACMP) with rail-to-rail inputs

• One 8-bit 5V digital-to-analog converter (DAC)

• Up to two serial peripheral interface (SPI) modules

• Up to two serial communication interface (SCI) modules

• SENT Transmitter Interface

• MSCAN (1 Mbit/s, CAN 2.0 A, B software compatible) module

• One on-chip CAN physical layer module

• 8-channel timer module (TIM0) with input capture/output compare

• 4-channel timer module (TIM1) with input capture/output compare (fast max 64MHz)

• Inter-IC (IIC) module

• 4-channel 16-bit Pulse Width Modulation module (PWM0)

• 4-channel 16-bit Pulse Width Modulation module (PWM1) (fast max 64MHz)

• On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages

• Autonomous periodic interrupt (API), supports cyclic wakeup from Stop mode

• Four pins to support 25 mA drive strength to VSSX

• One pin to support 20 mA drive strength from VDDX (EVDD)

• Two High Voltage Input (HVI) pins

• Supply VSUP monitoring with warning

• On-chip temperature sensor, temperature value can be measured with ADC or can generate a high

temperature interrupt
