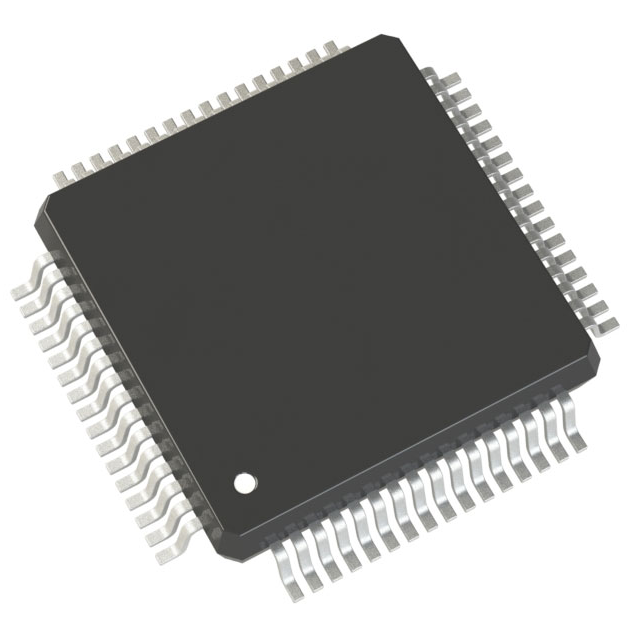

A Comprehensive Guide To S9S12G128ACLL Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 100-LQFP (14x14)

12V1 HCS12 Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 100-LQFP (14x14)

Overview

The Freescale Semiconductor MC9S12G family is a feature-rich 16-bit microcontroller product line

focused on low cost, high performance and low pin count for automotive applications. This

family bridges the gap between high-end 8-bit microcontrollers and high-performance 16-bit

microcontrollers, such as the MC9S12XS family. The MC9S12G family is targeted at generic

automotive applications requiring CAN or LIN/SAE J2602 communication and is used in applications

such as body controllers, door modules, occupant detection and lighting modules.

The MC9S12G family uses many of the same features found on the MC9S12XS and MC9S12P

family, including error correction code (ECC) on flash memory, a fast analog-to-digital converter

(ADC) and a frequency modulated phase locked loop (IPLL) that improves the EMC performance. In

order to make using the MC9S12G family easier in your embedded designs, it features an EEPROM

with a small erase sector size.

Features

S12 CPU core, 25 MHz bus and up to 240 KB on-chip flash with ECC

Up to 240 KB on-chip flash with ECC

Up to 4 KB EEPROM with ECC

Up to one multi-scalable controller area network (MSCAN) module (supporting CAN protocol 2.0A/B)

Up to three serial communication interface (SCl) modules supporting LIN communications and up to

three serial peripheral interface (SPI) modules

Up to 12 KB on-chip SRAM

Phase locked loop (IPLL) frequency multiplier with internal filter

Timer module (TIM) supporting up to eight channels that provide a range of 16-bit input capture,output

compare, counter and pulse accumulator functions

Pulse width modulation (PWM) module with up to eight 8-bit channels

Up to 16-channel,12-bit resolution successive approximation analog-to-digital converter (ADC)

Precision fixed voltage reference for ADC conversions

On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages

Analog comparator module 8-bit digital-to-analog converter (DAC)
