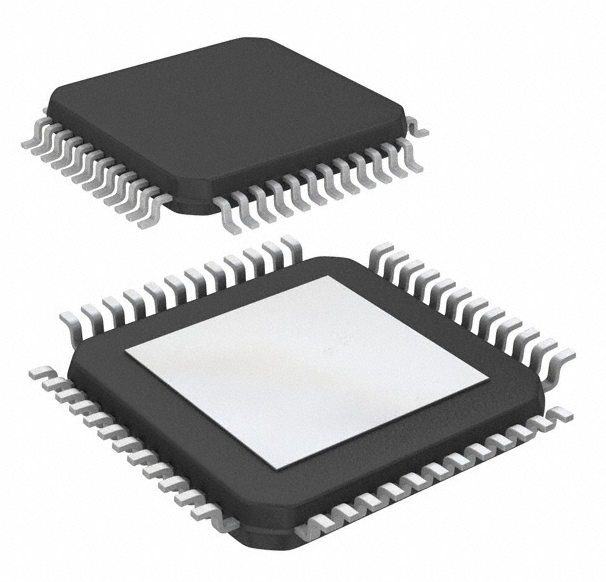

S12 S/MM9 Microcontroller IC 16-Bit 20MHz 32KB (32K x 8) FLASH 48-HLQFP (7x7)

Integrated S12 Based Relay Driver with LIN

The S/MM912F634 is an integrated single package solution integrating

an HCS12 microcontroller with a SMARTMOS analog control IC. The

Die to Die Interface (D2D) controlled analog die combines system base

chip and application specific functions, including a LIN transceiver.

Features

• 16-Bit S12 CPU, 32 kByte FLASH, 2.0 kByte RAM

• Background debug (BDM) & debug module (DBG)

• Die to die bus interface for transparent memory mapping

• On-chip oscillator & two independent watchdogs

• LIN 2.1 physical layer interface with integrated SCI

• Six digital MCU GPIOs shared with SPI (PA5…0)

• 10-Bit, 15 channel - analog to digital converter (ADC)

• 16-Bit, four channel - timer module (TIM16B4C)

• 8-Bit, two channel - pulse width modulation module (PWM)

• Six high-voltage / wake-up inputs (L5.0)

• Three low-voltage GPIOs (PB2.0)

• Low-power modes with cyclic sense & forced wake-up

• Current sense module with selectable gain

• Reverse battery protected voltage sense module

• Two protected low-side outputs to drive inductive loads

• Two protected high-side outputs

• Chip temperature sensor

• Hall sensor supply

• Integrated voltage regulator(s)
