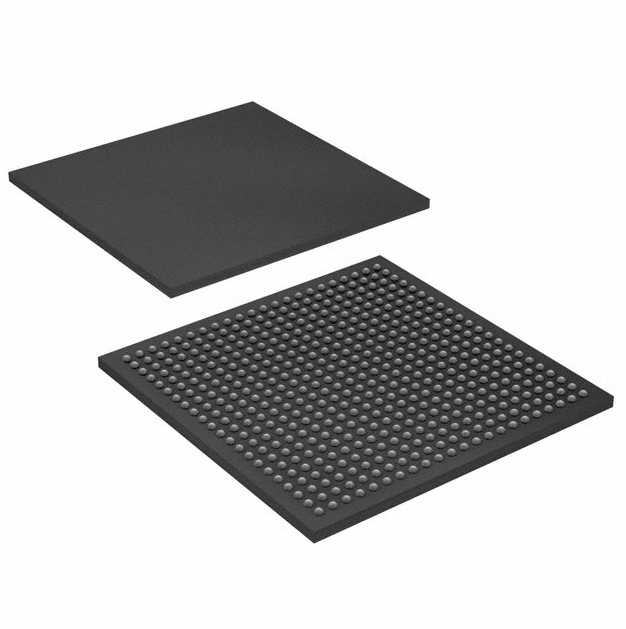

A Comprehensive Guide to XC6SLX75-2CSG484C IC FPGA 328 I/O 484CSBGA

Spartan®-6 LX Field Programmable Gate Array (FPGA) IC 328 3170304 74637 484-FBGA, CSPBGA

Spartan-6 FPGA Electrical Characteristics

Spartan®-6 LX and LXT FPGAs are available in various speed grades, with -3 having the highest performance. The DC and

AC electrical parameters of the Automotive XA Spartan-6 FPGAs and Defense-grade Spartan-6Q FPGAs devices are

equivalent to the commercial specifications except where noted. The timing characteristics of the commercial (XC) -2 speed

grade industrial device are the same as for a -2 speed grade commercial device. The -2Q and -3Q speed grades are

exclusively for the expanded (Q) temperature range. The timing characteristics are equivalent to those shown for the -2 and

-3 speed grades for the Automotive and Defense-grade devices.

Spartan-6 FPGA DC and AC characteristics are specified for commercial (C), industrial (I), and expanded (Q) temperature

ranges. Only selected speed grades and/or devices might be available in the industrial or expanded temperature ranges for

Automotive and Defense-grade devices. References to device names refer to all available variations of that part number (for

example, LX75 could denote XC6SLX75, XA6SLX75, or XQ6SLX75). The Spartan-6 FPGA -3N speed grade designates

devices that do not support MCB functionality.

All supply voltage and junction temperature specifications are representative of worst-case conditions. The parameters

included are common to popular designs and typical applications.
